Either rotating Tornado Nozzles or fixed Power Nozzles are at work within the Tornado Channel. The rotating Tornado Nozzles are particularly suitable for cleaning profiled surfaces or surfaces with structures. The fixed Power Nozzles are tasked primarily with cleaning surfaces which have blind holes or through holes.
Each nozzle can be activated either by means of a mechanical valve or electrically via a signal to a magnetic valve. If the magnetic valves are connected to an existing overall control system, the consumption of compressed air can be kept to a minimum.

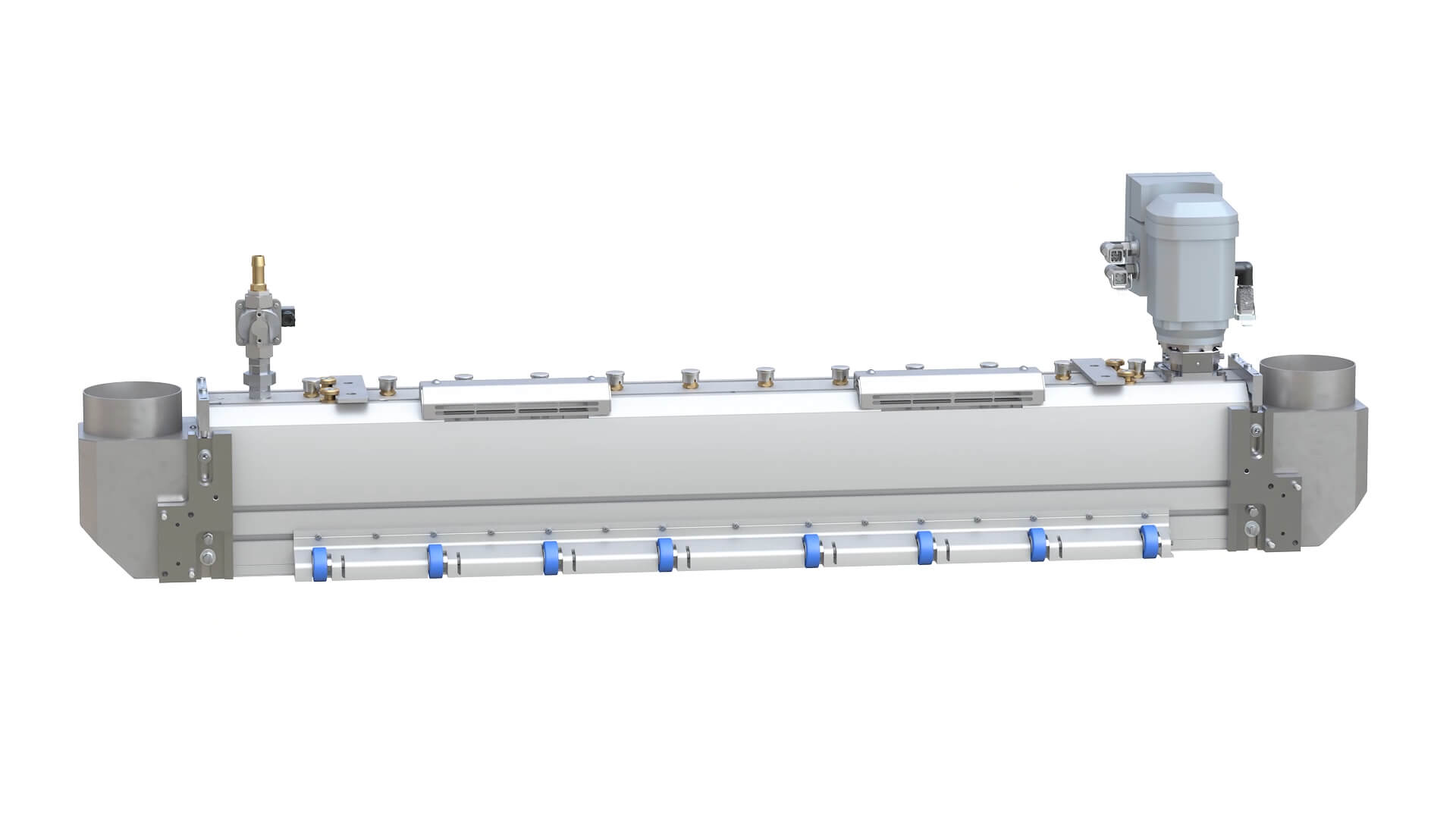

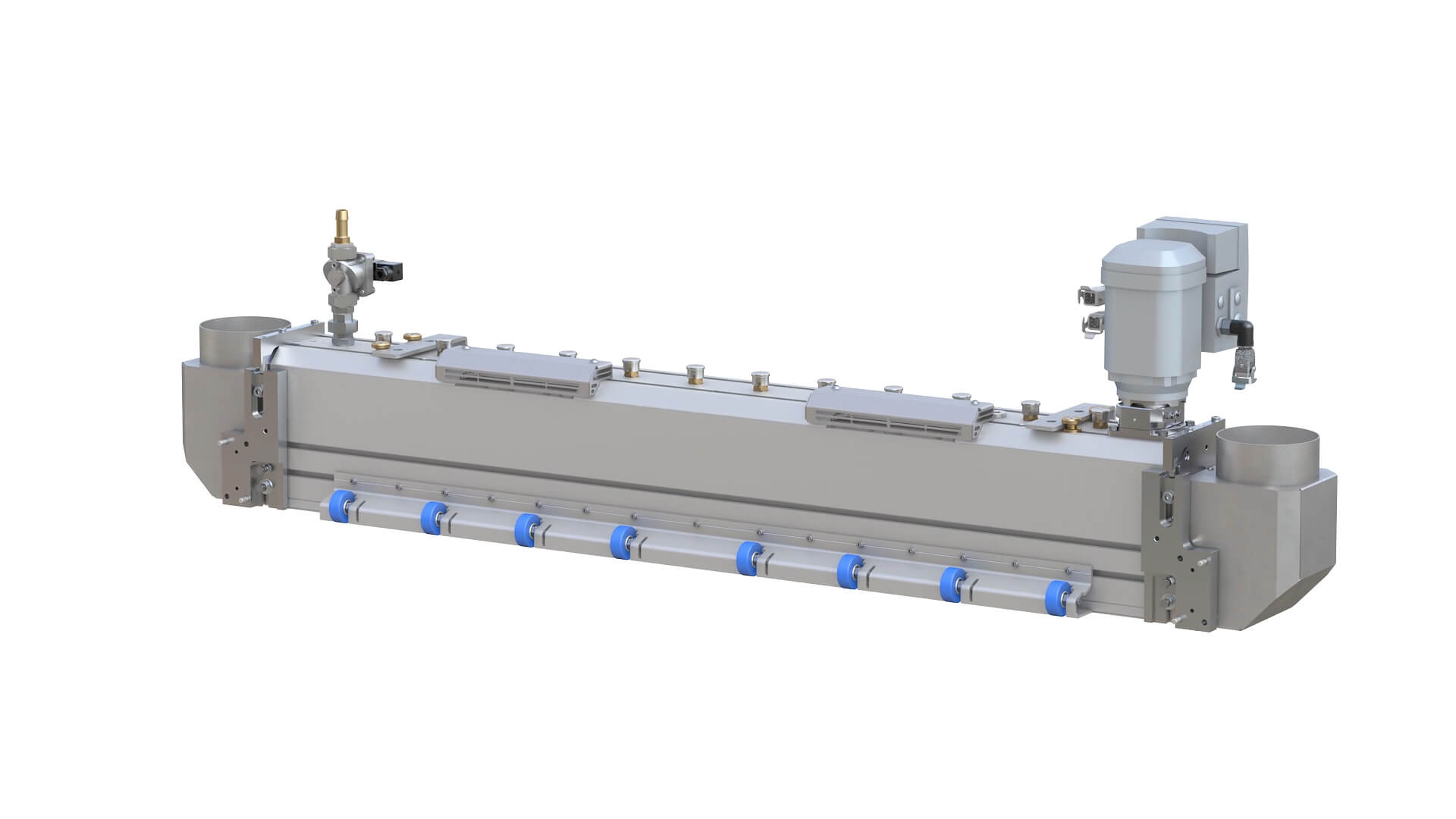

The cleaning nozzles are mounted on a u-shaped aluminium profile at fixed intervals. Air diverters and spacing rollers are positioned at the inlet and outlet of the channel. The diverters prevent excessive false air being drawn in while the rollers guide the panels on entry to the channel and provide for an optimal distance to the product surface.
